SpringCloud - 分布式事务五（微服务间调用的事务处理）
关于 nacos，seata-server，seata 相关表等 创建配置请看我前面的文章。

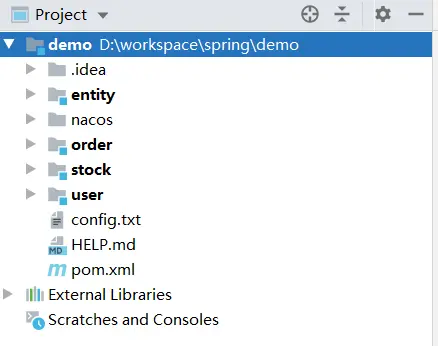

# 项目结构
|-- demo
|-- entity 实体对象(为了让其他服务拥有所有服务对象)
|-- order 订单 (pom导入了 entity )
|-- stock 库存 (pom导入了 entity )
|-- user 用户 (pom导入了 entity )
1
2
3
4
5
2
3
4
5
# 项目依赖
# entity
<properties>
<mybatis-plus>3.3.1.tmp</mybatis-plus>
<db-drive>1.1.23</db-drive>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
<!-- 数据持久相关配置 -->
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-boot-starter</artifactId>
<version>${mybatis-plus}</version>
</dependency>
<!-- 驱动 -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid-spring-boot-starter</artifactId>
<version>${db-drive}</version>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
<!-- nacos 注册中心 -->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
<!-- 多数据源，seata分布式事务 -->
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>dynamic-datasource-spring-boot-starter</artifactId>
<version>3.2.0</version>
</dependency>
</dependencies>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
# order、stock、user
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>com.example</groupId>
<artifactId>entity</artifactId>
<version>0.0.1-SNAPSHOT</version>
</dependency>
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-seata</artifactId>
<exclusions>
<exclusion>
<groupId>io.seata</groupId>
<artifactId>seata-spring-boot-starter</artifactId>
</exclusion>
</exclusions>
<version>2.2.1.RELEASE</version>
</dependency>
<dependency>
<groupId>io.seata</groupId>
<artifactId>seata-spring-boot-starter</artifactId>
<version>1.3.0</version>
</dependency>
<dependency>
<groupId>io.seata</groupId>
<artifactId>seata-all</artifactId>
<version>1.3.0</version>
</dependency>
</dependencies>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
# 配置文件
因为里面有 nacos 服务注册，所以会有两个配置文件，但配置文件基本一样，所以我就挑 user 服务的。
# bootstrap.properties
注意 spring.application.name 不同服务这里是不一样的
#spring.profiles.active=dev
# Nacos Server 的地址
#spring.cloud.nacos.config.server-addr=0.0.0.0:8848
spring.cloud.nacos.config.server-addr=127.0.0.1:8848
# 这里的对应 Nacos Server 中的 Data ID 的前缀
spring.application.name=user-server
# 这里的对应 Nacos Server 中的指定的配置规则格式和 Data ID 的后缀
spring.cloud.nacos.config.file-extension=yaml
# 关闭动态刷新，默认是开启
spring.cloud.nacos.config.refresh.enabled=false
# 服务发现
#spring.cloud.nacos.discovery.server-addr=0.0.0.0:8848
spring.cloud.nacos.discovery.server-addr=127.0.0.1:8848
# 值范围：1到100。值越大，重量越大。
spring.cloud.nacos.discovery.weight=1
# 集群名称
spring.cloud.nacos.discovery.cluster-name=user
# 心跳间隔 10秒
spring.cloud.nacos.discovery.heart-beat-interval=10000
# sentinel 日志
# spring.cloud.sentinel.log.dir=./sentinel/log
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
# application.yml
以下为多数据源配置，但相关服务只需要配置相关库就行。
server:
port: 8082
spring:
main:
allow-bean-definition-overriding: true
autoconfigure:
exclude: com.alibaba.druid.spring.boot.autoconfigure.DruidDataSourceAutoConfigure
datasource:
druid:
stat-view-servlet:
enabled: true
url-pattern: "/druid/*"
allow: 127.0.0.1
deny: 192.168.1.73
reset-enable: true
login-username: admin
login-password: admin@2020
web-stat-filter:
enabled: true
url-pattern: "/*"
exclusions: "*.js,*.gif,*.jpg,*.bmp,*.png,*.css,*.ico,/druid/*"
dynamic:
druid:
filters: stat,wall
initial-size: 10
min-idle: 10
maxActive: 200
maxWait: 10000
useUnfairLock: true
validation-query: 'select 1'
testWhileIdle: true
testOnBorrow: false
testOnReturn: false
primary: user
# 启用严格模式
strict: true
seata: true
seata-mode: AT
datasource:
user:
url: jdbc:mysql://0.0.0.0:3306/user?useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&useSSL=false&zeroDateTimeBehavior=convertToNull&&serverTimezone=Asia/Shanghai
driver-class-name: com.mysql.cj.jdbc.Driver
type: com.alibaba.druid.pool.DruidDataSource
username: dev
password: mysql@dev.2020
# 建表脚本
# schema: classpath:db/schema-account.sql
# order:
# url: jdbc:mysql://0.0.0.0:3306/order?useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&useSSL=false&zeroDateTimeBehavior=convertToNull&&serverTimezone=Asia/Shanghai
# driver-class-name: com.mysql.cj.jdbc.Driver
# type: com.alibaba.druid.pool.DruidDataSource
# username: dev
# password: mysql@dev.2020
# stock:
# url: jdbc:mysql://0.0.0.0:3306/stock?useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&useSSL=false&zeroDateTimeBehavior=convertToNull&&serverTimezone=Asia/Shanghai
# driver-class-name: com.mysql.cj.jdbc.Driver
# type: com.alibaba.druid.pool.DruidDataSource
# username: dev
# password: mysql@dev.2020
seata:
enabled: true
# 启用自动代理数据源
enable-auto-data-source-proxy: false
# 随便起个名字,但最好与服务名称一致
application-id: ${spring.application.name}
# 此处的名称一定要与 vgroup-mapping下配置的参数保持一致
tx-service-group: my_test_tx_group
# 目的是找 seata 的配置
config:
type: nacos
nacos:
server-addr: 127.0.0.1:8848
username: nacos
password: nacos@root@2020
namespace:
group: SEATA_GROUP
# registry 目的是找 seata-server 服务
registry:
type: nacos
nacos:
application: seata-server
server-addr: 127.0.0.1:8848
username: nacos
password: nacos@root@2020
namespace:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
# 代码
关于实体表的结构在上一篇文章已经有了，这里直接跳过。
# entity
entity 被所有服务所引用，所以这里直接写 Feign 接口是最方便的。
@FeignClient(value = "user-server",path = "/account")
public interface AccountApi {
@PostMapping("/debit")
void debit(@RequestParam("uid") Integer uid, @RequestParam("money") Integer money);
}
1
2
3
4
5
6
2
3
4
5
6
@FeignClient(value = "order-server",path = "/order")
public interface OrderApi {
@PostMapping("/create")
void create(@RequestParam("uid") Integer uid,
@RequestParam("stockId") Integer stockId,
@RequestParam("count") Integer count,
@RequestParam("money") Integer money
);
}
1
2
3
4
5
6
7
8
9
10
2
3
4
5
6
7
8
9
10
@FeignClient(value = "stock-server",path = "/stock")
public interface StockApi {
@PostMapping("/deduct")
Integer deduct(@RequestParam("stockId") Integer stockId, @RequestParam("count") Integer count);
}
1
2
3
4
5
6
2
3
4
5
6
# order，stock，user
关于 order，stock，user 的 mapper 和 server 已经在上一篇写过了，只需要把他们放到对应的服务里面即可。然后修改实现类，把里面调用其他的 server 改成调用 xxxApi 即可，在添加一层 controller。以 order 为例：
@Service
public class OrderServerImpl implements OrderServer {
@Autowired
private OrderMapper orderMapper;
@Autowired
private AccountApi accountApi;
@Override
public void create(Integer uid, Integer stockId, Integer count,Integer money) {
accountApi.debit(uid,money);
Order order = new Order();
order.setUid(uid);
order.setTime(new Date());
order.setCount(count);
order.setMoney(money);
if(1==1){
throw new RuntimeException("下单异常");
}
orderMapper.insert(order);
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
@RestController
@RequestMapping("/order")
public class OrderController {
@Autowired
private OrderServer orderServer;
@PostMapping("/create")
public void create(@RequestParam("uid") Integer uid,
@RequestParam("stockId") Integer stockId,
@RequestParam("count") Integer count,
@RequestParam("money") Integer money
){
orderServer.create(uid, stockId, count, money);
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

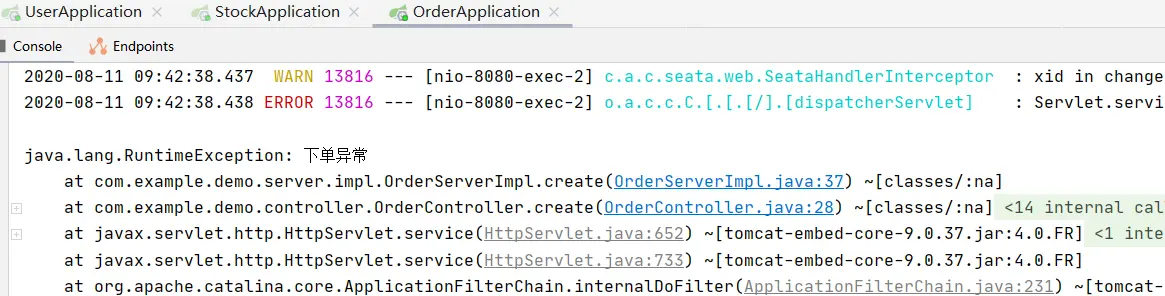

这里我们可以看到 order 里面其实有抛异常的动作。
再说一遍我们的测试方案是：
采购开始 -> 减库存，得到所需花费金额 -> 用户减去所需花费金额 -> 创建订单
1
# 编写调用类

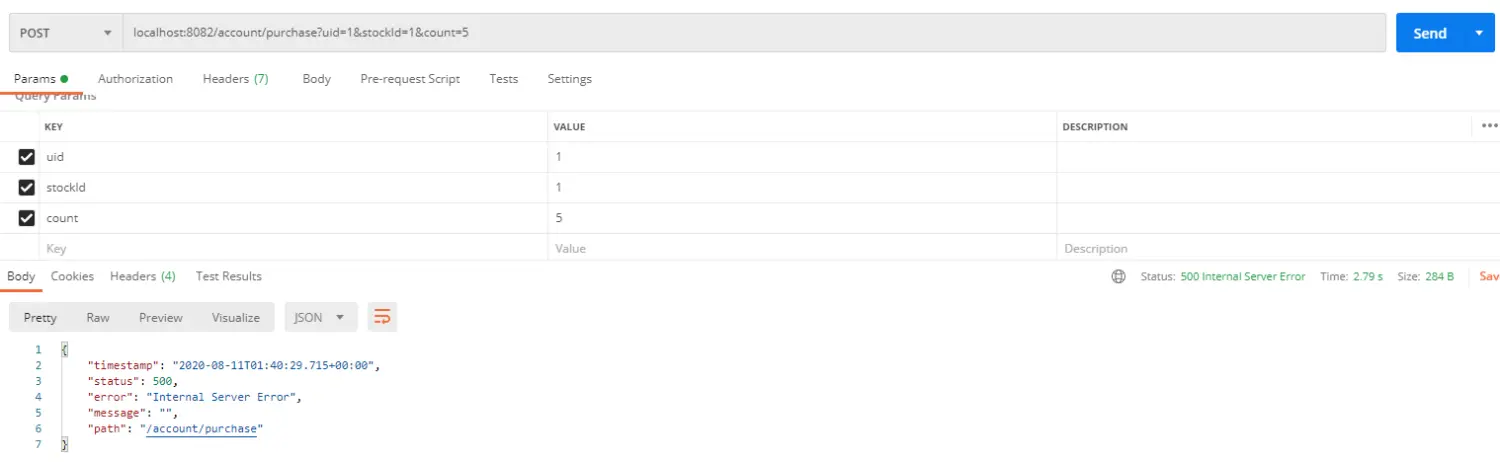

调用类我是在 user 服务里面做的，方法为 purchase
@RestController
@RequestMapping("/account")
public class AccountController {
@Autowired
private AccountServer accountServer;
@Autowired
private BusinessService businessService;
@PostMapping("/debit")
public void debit(@RequestParam("uid") Integer uid, @RequestParam("money") Integer money){
accountServer.debit(uid, money);
}
@PostMapping("/purchase")
public void purchase(@RequestParam("uid") Integer uid,@RequestParam("stockId") Integer stockId ,@RequestParam("count") Integer count){
businessService.purchase(uid, stockId,count);
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
再贴一下 BusinessServiceImpl
@Service
public class BusinessServiceImpl implements BusinessService {
@Autowired
private StockApi stockApi;
@Autowired
private OrderApi orderApi;
@GlobalTransactional
@Override
public void purchase(Integer uid, Integer stockId, Integer count) {
Integer money = stockApi.deduct(stockId, count);
orderApi.create(uid, stockId, count,money);
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
@GlobalTransactional 全局事务 (分布式事务注解)
# 启动所有服务

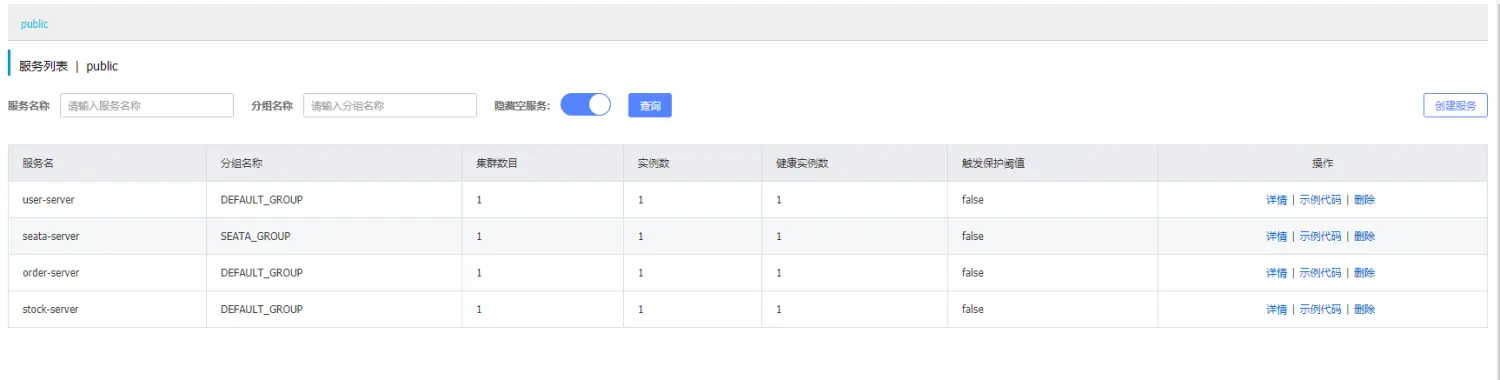

服务全部启动成功之后，你会在 nacos 看到如下：
# 测试
这里直接测试下单异常，会不会出现订单没创建，但是已经扣库存和余额。
检查数据库数据：
stock：id=1，num=500，price=5
account：id=1，amount=2000
order：
1
2
3
2
3
没有进行扣除，证明服务调用的分布式事务起作用的。
上次更新: 6/11/2025, 4:10:30 PM
